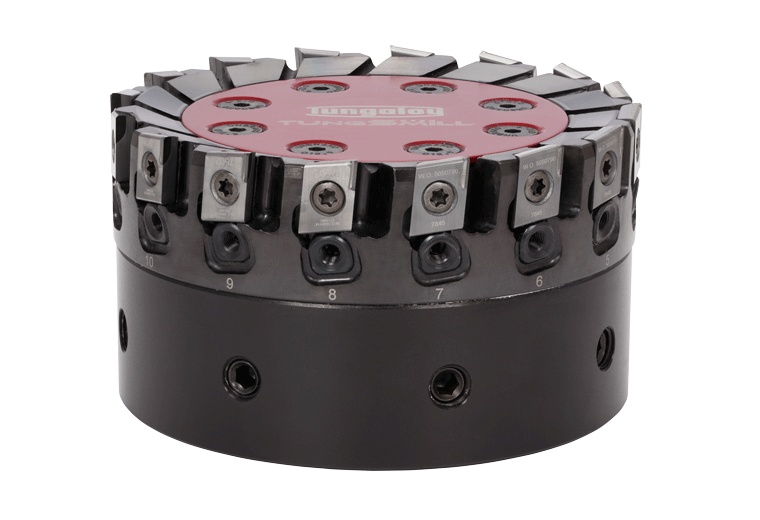

Picture of Tungaloy TPYP12M050B22.0R08 Milling Cutter 90.0° 1.967 Cutter Diameter Shell0.8661 8 Flute

Tungaloy TPYP12M050B22.0R08 Milling Cutter 90.0° 1.967 Cutter Diameter Shell0.8661 8 Flute

Part Number: TUN2717387 ISO: TPYP12M050B22.0R08 ANSI:TPYP12M050B22.0R08
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$942.70
SKU: 1016322

Description

TUNGALOY 2717387 90.0°, Face Mill SHELL0.8661 1.9670 49.96MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Other
Hand Right Hand
Insert Screw 2704942
Clamp Screw 4360308
Clamp/Wedge 2714362
Dimensions & Sizing
Flutes/Inserts 8
Tool Dia 1.9670 49.96MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Rating Aluminum, Brass, Plastic
Cut Dia Min 1.9690 50.01MM
Depth Of Cut Max 0.6570
Cut Dia Max 2.0240 51.41MM
Materials & Finish
Tool Material Steel
