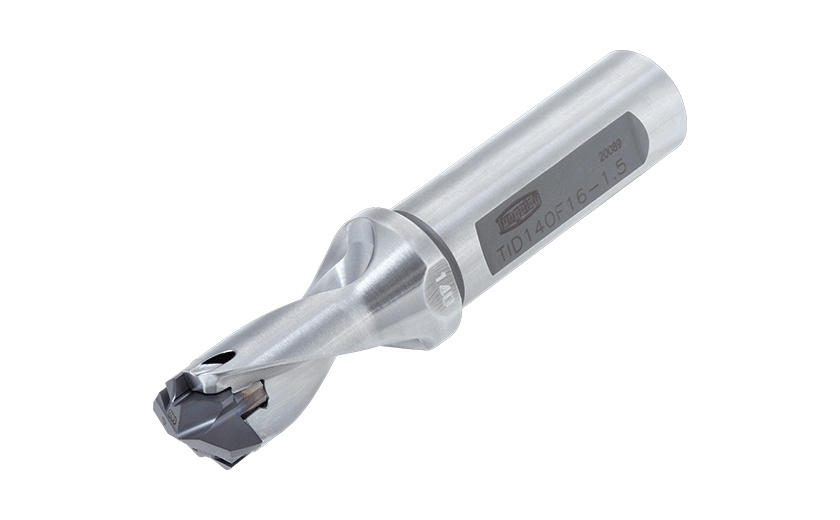

Picture of Tungaloy TIDU0472F0625-1.5 0.472" DrillMeister Indexable Head Drill with Flanged Shank

Tungaloy TIDU0472F0625-1.5 0.472" DrillMeister Indexable Head Drill with Flanged Shank

Part Number: TUN6863719 ISO: TIDU0472F0625-1.5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1131169
Vendor: Sussex Tool and Supply
$264.48
TUNGALOY TUN6863719 Indexable Drill Dia0.6250 0.4724 12.00MM Cutter Dia Flute Length 0.7950 20.19MM Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.2680 83.01MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Type Of Tool Drill
Included Angle 136°
Flute Length 0.7950 20.19MM
Cut Dia Min 0.4724 12.00MM
Dia Deep 1.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5080 12.90MM
Multi Spindle Yes
