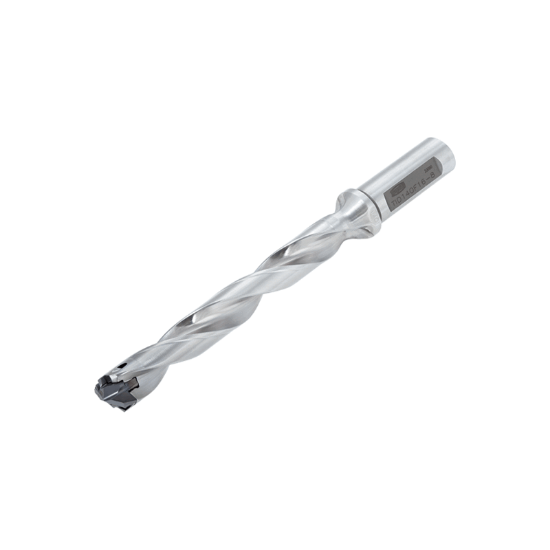

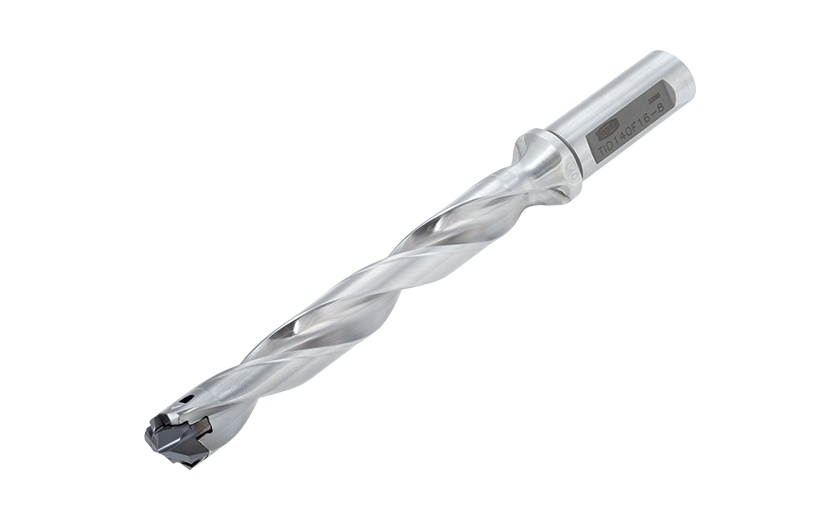

Picture of TUNGALOY TID250F32-8 25mm DrillMeister Indexable head Drill with flanged Shank

TUNGALOY TID250F32-8 25mm DrillMeister Indexable head Drill with flanged Shank

ISO: TID250F32-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723433
Delivery date: 3-5 days
$894.35
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Additional Key Information 2 Single Insert
Sold by Pieces 1
Additional Key Information 3 Drill
Package Size 1
Additional Key Information 1 Indexable Drill
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Overall Len 11.7913 299.50MM
Flutes/Inserts 2
Dia Deep 8.0XD
Included Angle 136°
Cut Dia Min 0.9843 25.00MM - 63/64
Machine Side BBAR1.2598,WELDON1.2598
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 0.9844 25.00MM - 63/64
Cut Dia Max 1.0197 25.90MM
Shank/Pilot Dia 1.2598 32.00MM
Flute Length 8.0710 205.00MM
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Medical Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
