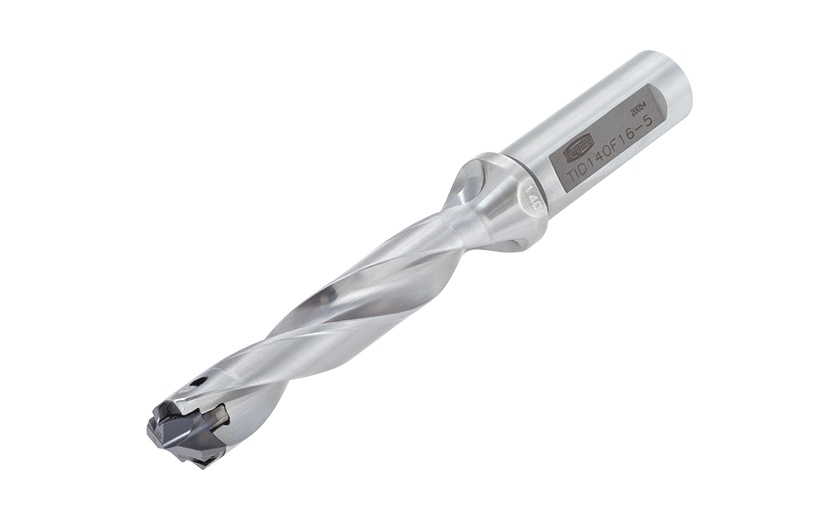

Picture of Tungaloy TID135F16-5 13.5mm DrillMeister Indexable Head Drill with Flanged Shank

Tungaloy TID135F16-5 13.5mm DrillMeister Indexable Head Drill with Flanged Shank

Part Number: TUN6706788 ISO: TID135F16-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1131013
Vendor: Sussex Tool and Supply
$371.25
TUNGALOY TUN6706788 Indexable Drill Dia0.6299 0.5315 13.50MM Cutter Dia Flute Length 2.7950 70.99MM Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6299 16.00MM
Overall Length 5.2402 133.10MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5313 13.50MM - 17/32
Type Of Tool Drill
Included Angle 136°
Flute Length 2.7950 70.99MM
Cut Dia Min 0.5315 13.50MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5472 13.90MM
Multi Spindle Yes
