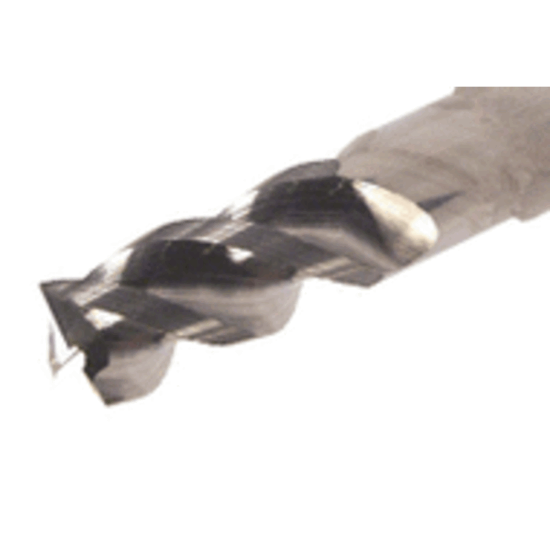

TUNGALOY TECA250H3-38/75C25CF-R02 KS15F DIA 25MM SH 0.9843 LOC 1.4961 OAL5.1181 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0079 0.20MM TUNG MEISTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN5622786
Delivery date: 3-5 days
$587.85
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 2 Corner Radius
Package Size 1
Application Face Milling, Profile Milling, Copy Milling, Slot Milling
Material # Material#25, Material#42, Material#20
Performance Rating High Performance
Additional Key Information 4 Standard Helix
Shipping State Illinois
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side CYLINDRICAL0.9843
Length Of Cut 1.4961 38.00MM
Inch/Metric Metric
Cutter Dia 0.9844 25.00MM - 63/64
Overall Len 5.1181 130.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Corner Radius 0.0079 0.20MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Length Type Standard
Dimension Description 0.984 x 0.984 x 1.496 x 5.118
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
