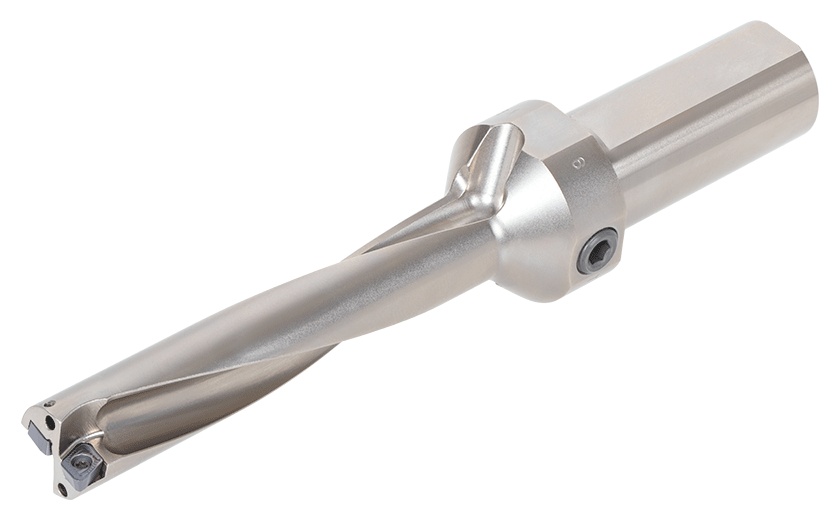

Picture of Tungaloy TDXU-1625FS-05 1-5/8" TungDrillTwisted Indexable Insert Drills with side & rear Coolant Port, L/D = 5, Flat cotter

Tungaloy TDXU-1625FS-05 1-5/8" TungDrillTwisted Indexable Insert Drills with side & rear Coolant Port, L/D = 5, Flat cotter

Part Number: TUN6718591

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1131590
Vendor: Sussex Tool and Supply
$1,139.35
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.5000 38.10MM - 1-1/2
Cutter Type Drill
Overall Length 12.3520 313.74MM
Machine Side (Toolpost) BBAR1.5000, WELDON1.5000
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Weldon, Boring Bar
Flutes Or Inserts 2
Shipping State ILLINOIS
Type Indexable Drill Multi Insert
Family Group TungDrill Twisted
Tool Material Steel
Mach Side Connection Size 1.5000 38.10MM - 1-1/2
Tool Diameter 1.6250 41.28MM - 1-5/8
Cut Diameter Min 1.6250 41.28MM - 1-5/8
Coolant Thru Thru Coolant
Drill Type Indexable Drill
Made In USA No
Flute Length 8.1860 207.92MM
Diameter Deep 5.0x Dia
