  • TUNGALOY PWLNR2525M08-CHP Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

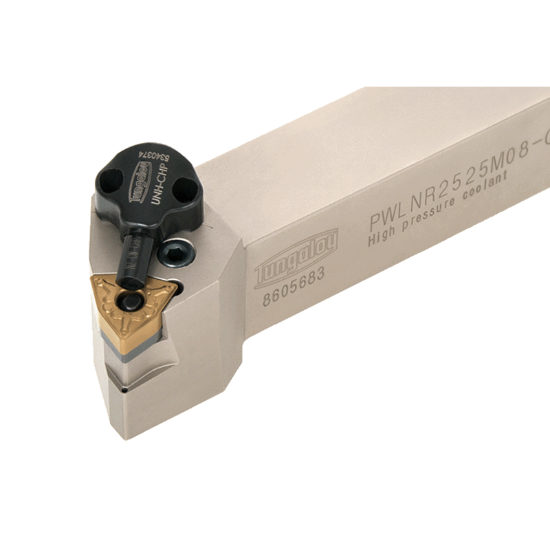

Picture of TUNGALOY PWLNR2525M08-CHP Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

TUNGALOY PWLNR2525M08-CHP Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

ANSI: PWLNR2525M08-CHP

ISO: PWLNR2525M08-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755220
Delivery date: 3-5 days
$308.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Neg,L style, 95deg Approach

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg trigon inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 2 Trigon
Insert/Tool Tool
Shipping State Illinois
Sold by Pieces 1
Application Ext.Turning
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side STICK TOOL0.9843
Insert Size Ic 12 "43"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Lead Angle 95°
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
Hand R/L Right
Inter/Extern External
