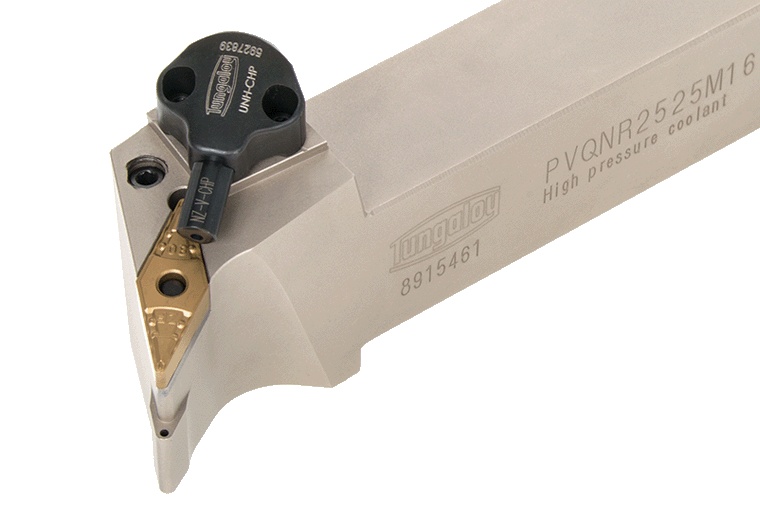

Picture of Tungaloy PVQNR2525M16-CHP Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

Tungaloy PVQNR2525M16-CHP Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

Part Number: TUN6755227 ISO: PVQNR2525M16-CHP ANSI:PVQNR2525M16-CHP
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$511.70
SKU: 1072834

Description

TUNGALOY 6755227 35.0 ° Stick Tool0.9843 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Hand Right Hand
Inter/Extern External
Clamp Screw 6831778
Seat/Nest 6937545
Dimensions & Sizing
Overall Length 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 16 "33"
Geometry & Angles
Lead Angle 117.5°
Lead Angle & Clearance Angle Combined 117.5° Lead Angle 25.0° Clearance Angle
Clearance Angle 25.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
