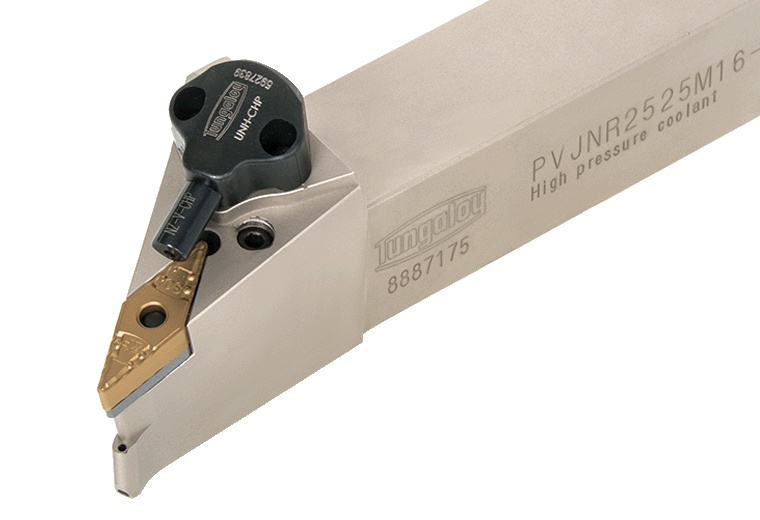

Picture of Tungaloy PVJNR123-CHP Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

Tungaloy PVJNR123-CHP Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

Part Number: TUN6755253 ISO: PVJNR123-CHP ANSI:PVJNR123-CHP
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$454.15
SKU: 1072859

Description

TUNGALOY 6755253 35.0 ° Stick Tool0.7500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Hand Right Hand
Inter/Extern External
Clamp Screw 6831778
Seat/Nest 6937545
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 16 "33"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 50.0° Clearance Angle
Clearance Angle 50.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
