  • TUNGALOY PTGNR2525M16-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 0.984 Shank

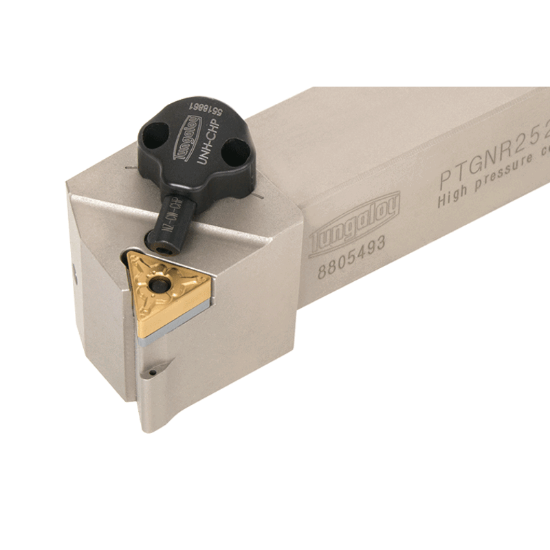

Picture of TUNGALOY PTGNR2525M16-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 0.984 Shank

TUNGALOY PTGNR2525M16-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 0.984 Shank

ANSI: PTGNR2525M16-CHP

ISO: PTGNR2525M16-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755212
Delivery date: 3-5 days
$308.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Neg,G style, 91deg Approach

Details

Lever lock type toolholder with 91deg approach angle, for negative triangle inserts TN**1604**, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Insert/Tool Tool
Additional Key Information 2 Triangle
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 16 "33"
Overall Len 5.9055 150.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Machine Side STICK TOOL0.9843
Lead Angle 91°
Cutting & Machining Properties
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
