  • TUNGALOY PTGNR163-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 1.000 Shank

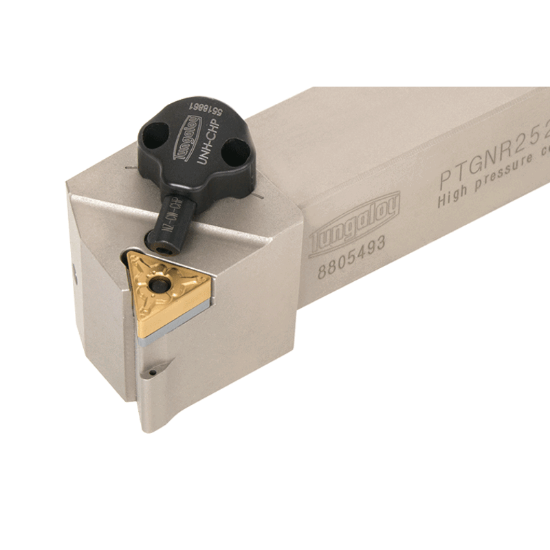

Picture of TUNGALOY PTGNR163-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 1.000 Shank

TUNGALOY PTGNR163-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 1.000 Shank

ANSI: PTGNR163-CHP

ISO: PTGNR163-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755243
Delivery date: 3-5 days
$308.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Neg,G style, 91deg Approach

Details

Lever lock type toolholder with 91deg approach angle, for negative triangle inserts TN**33*, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 2 Triangle
Shipping State Illinois
Sold by Pieces 1
Insert/Tool Tool
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side STICK TOOL1.0000
Lead Angle 91°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Hand R/L Right
Inter/Extern External
