  • TUNGALOY PTGNR1623-CHP Stick Tool Triangle Insert EcoTurn Toolholders , Neg,G style, 91deg Approach , Steel Square 1.000 Shank

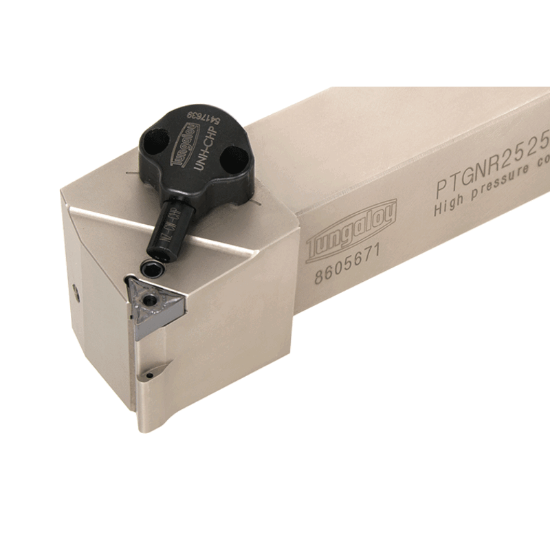

Picture of TUNGALOY PTGNR1623-CHP Stick Tool Triangle Insert EcoTurn Toolholders , Neg,G style, 91deg Approach , Steel Square 1.000 Shank

TUNGALOY PTGNR1623-CHP Stick Tool Triangle Insert EcoTurn Toolholders , Neg,G style, 91deg Approach , Steel Square 1.000 Shank

ANSI: PTGNR1623-CHP

ISO: PTGNR1623-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755239
Delivery date: 3-5 days
$308.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

EcoTurn Toolholders Neg,G style, 91deg Approach

Details

Lever lock type toolholder with 91deg approach angle, for negative triangle inserts TN**23..., with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Sold by Pieces 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 2 Triangle
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Lead Angle 91°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side STICK TOOL1.0000
Cutting & Machining Properties
Inter/Extern External
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
