  • TUNGALOY PTGNL2525M16-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 0.984 Shank

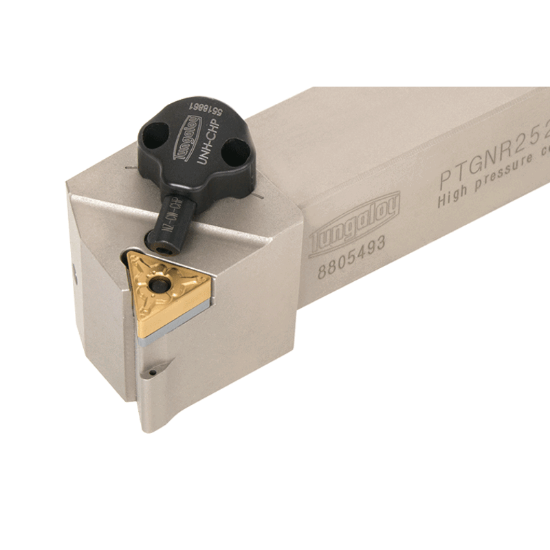

Picture of TUNGALOY PTGNL2525M16-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 0.984 Shank

TUNGALOY PTGNL2525M16-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 0.984 Shank

ANSI: PTGNL2525M16-CHP

ISO: PTGNL2525M16-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755213
Delivery date: 3-5 days
$308.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Neg,G style, 91deg Approach

Details

Lever lock type toolholder with 91deg approach angle, for negative triangle inserts TN**1604**, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Sold by Pieces 1
Insert Type Negative
Additional Key Information 1 Stick Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Additional Key Information 2 Triangle
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 16 "33"
Machine Side STICK TOOL0.9843
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Lead Angle 91°
Cutting & Machining Properties
Insert Style TN
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
