  • TUNGALOY PDJNR1616H11 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.629 Shank

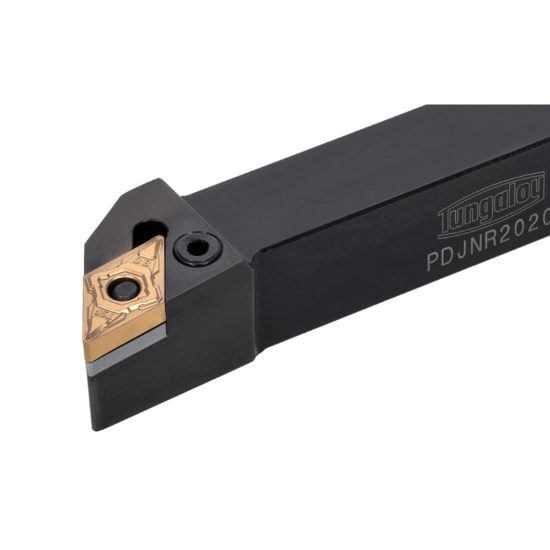

Picture of TUNGALOY PDJNR1616H11 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY PDJNR1616H11 Stick Tool 55.0° Insert Neg,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: PDJNR1616H11

ISO: PDJNR1616H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805629
Delivery date: 3-5 days
$80.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Neg,J style, 93deg Approach

Details

Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Stick Tool
Sold by Pieces 1
Insert/Tool Tool
Additional Key Information 2 55.0°
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Application Ext.Turning
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 11 "33"
Tool Material Steel
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Clearance Angle 27.0°
Machine Side Connection Type Stick Tool
Overall Len 3.9370 100.00MM
Lead Angle 93°
Machine Side STICK TOOL0.6299
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
