  • TUNGALOY PDJNR1033 Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.625 Shank

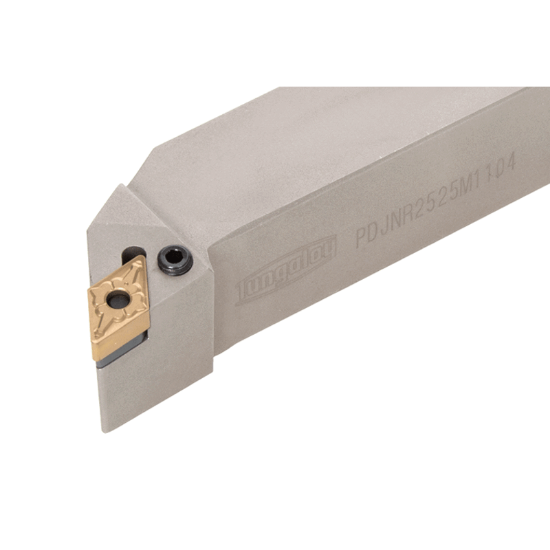

Picture of TUNGALOY PDJNR1033 Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.625 Shank

TUNGALOY PDJNR1033 Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.625 Shank

ANSI: PDJNR1033

ISO: PDJNR1033

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6711291
Delivery date: 3-5 days
$80.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

EcoTurn Toolholders Neg,J style, 93deg Approach

Details

Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts DN**33...

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 55.0°
Sold by Pieces 1
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Lead Angle 93°
Overall Len 4.0000 101.60MM
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Machine Side Connection Size 0.6250 15.88MM
Machine Side STICK TOOL0.6250
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style DN
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
