  • TUNGALOY PDJNL2525M1104-CHP Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.984 Shank

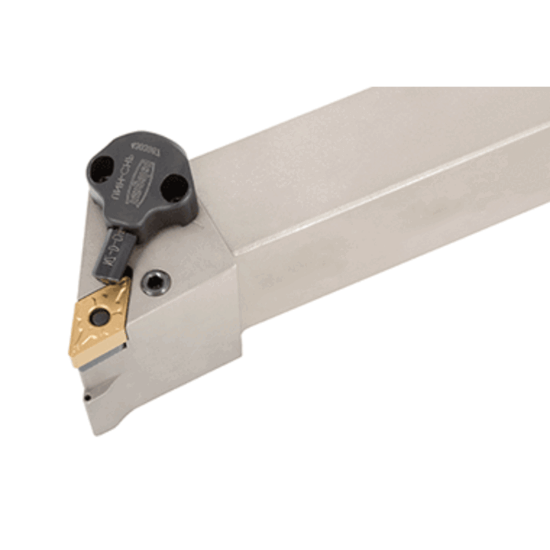

Picture of TUNGALOY PDJNL2525M1104-CHP Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY PDJNL2525M1104-CHP Stick Tool 55.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: PDJNL2525M1104-CHP

ISO: PDJNL2525M1104-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6728357
Delivery date: 3-5 days
$308.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

EcoTurn Toolholders Neg,J style, 93deg Approach

Details

Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts DN**1104..., with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 55.0°
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Sold by Pieces 1
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Machine Side STICK TOOL0.9843
Lead Angle 93°
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Insert Style DN
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
