  • TUNGALOY MVQNR2020K16 Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

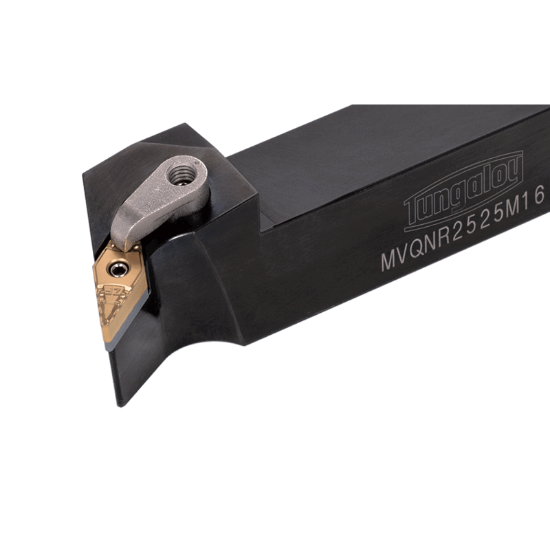

Picture of TUNGALOY MVQNR2020K16 Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

TUNGALOY MVQNR2020K16 Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

ANSI: MVQNR2020K16

ISO: MVQNR2020K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805509
Delivery date: 3-5 days
$172.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Neg,Q/H style, 45deg Approach

Details

Multi-clamp toolholder with 117.5deg approach angle, for negative 35deg, 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Additional Key Information 1 Stick Tool
Additional Key Information 2 35.0°
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side STICK TOOL0.7874
Insert Size Ic 16 "33"
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Lead Angle 117.5°
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 25.0°
Overall Len 4.9213 125.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VN
