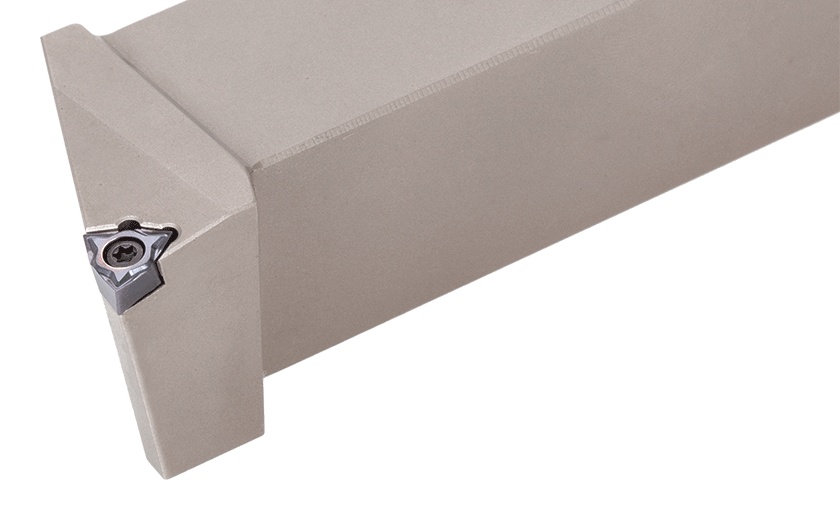

Picture of Tungaloy JSWLXR162 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 1.000 Shank

Tungaloy JSWLXR162 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 1.000 Shank

Part Number: TUN6776352 ISO: JSWLXR162 ANSI:JSWLXR162
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1072939
Vendor: Sussex Tool and Supply
$173.50

Description

TUNGALOY 6776352 Trigon Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WX
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Right Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 04 "22"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined Swiss, 95° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Trigon
