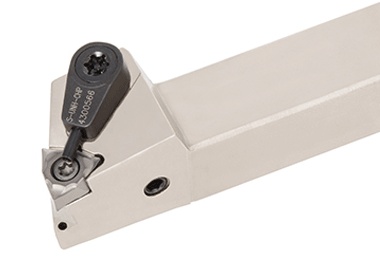

Picture of Tungaloy JSWL2XR082X-CHP Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.500 Shank

Tungaloy JSWL2XR082X-CHP Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.500 Shank

Part Number: TUN6776481 ISO: JSWL2XR082X-CHP ANSI:JSWL2XR082X-CHP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1072949
Vendor: Sussex Tool and Supply
$316.30

Description

TUNGALOY 6776481 Trigon Stick Tool0.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WX
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Right Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 4.7500 120.65MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 04 "22"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined Swiss, 95° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Trigon
