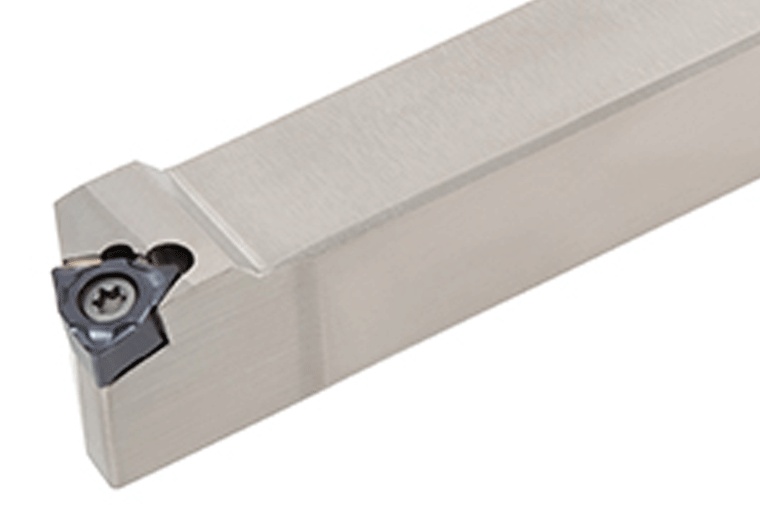

Picture of Tungaloy JSWL2XL1616X04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

Tungaloy JSWL2XL1616X04 Swiss Stick Tool Trigon Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

Part Number: TUN6712843 ISO: JSWL2XL1616X04 ANSI:JSWL2XL1616X04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1072477
Vendor: Sussex Tool and Supply
$135.15

Description

TUNGALOY 6712843 Trigon Stick Tool0.6299 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WX
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Left Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 4.7244 120.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 04 "22"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined Swiss, 95° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Trigon
