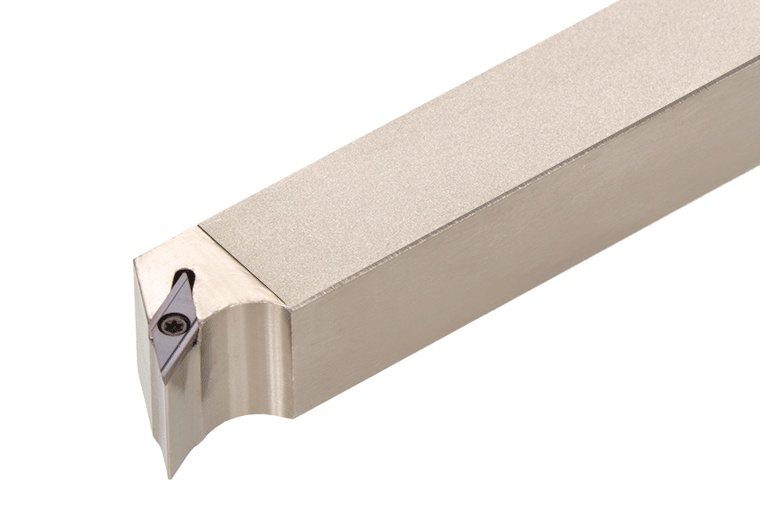

Picture of Tungaloy JSVP2PR1616K11 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.629 Shank

Tungaloy JSVP2PR1616K11 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.629 Shank

Part Number: TUN6864478 ISO: JSVP2PR1616K11 ANSI:JSVP2PR1616K11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1073580
Vendor: Sussex Tool and Supply
$116.55

Description

TUNGALOY 6864478 35.0 ° Stick Tool0.6299 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VP
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Hand Right Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 4.9213 125.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 11 "22"
Geometry & Angles
Lead Angle 117.5°
Lead Angle & Clearance Angle Combined Swiss, 117.5° Lead Angle 25.0° Clearance Angle
Clearance Angle 25.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
