  • TUNGALOY JSVP2PR1010K08 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.393 Shank

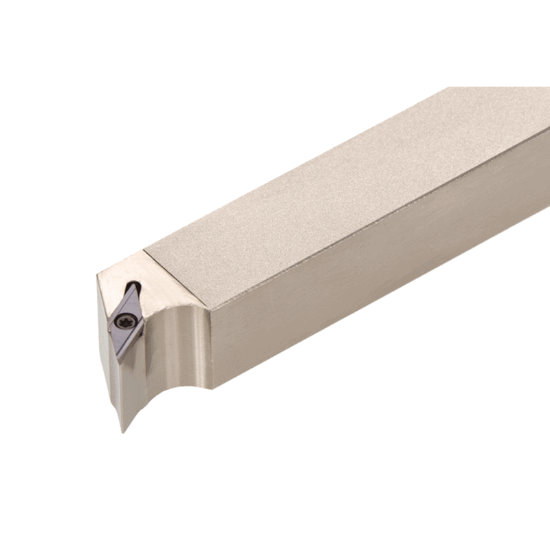

Picture of TUNGALOY JSVP2PR1010K08 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.393 Shank

TUNGALOY JSVP2PR1010K08 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.393 Shank

ANSI: JSVP2PR1010K08

ISO: JSVP2PR1010K08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864513
Delivery date: 3-5 days
$90.45
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,P style, 117.5deg Approach

Details

No-offset Screw-on toolholder with 117.5deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Additional Key Information 2 35.0°
Package Size 1
Sold by Pieces 1
Insert Application General Purpose
Additional Key Information 1 Stick Tool
Additional Key Information 3 Swiss
Shipping State Illinois
Insert/Tool Tool
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 08 "63"
Clearance Angle 25.0°
Shank/Pilot Dia 0.3937 10.00MM
Lead Angle 117.5°
Machine Side STICK TOOL0.3937
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Overall Len 4.9213 125.00MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
Hand R/L Right
Insert Style VP
