  • TUNGALOY JSVP2PL1616K08 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.629 Shank

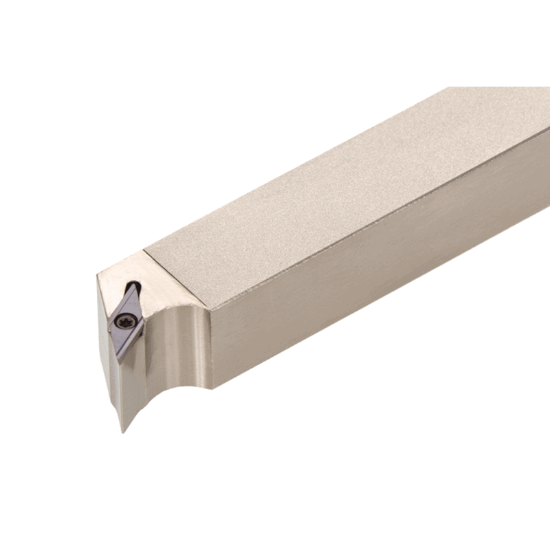

Picture of TUNGALOY JSVP2PL1616K08 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.629 Shank

TUNGALOY JSVP2PL1616K08 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.629 Shank

ANSI: JSVP2PL1616K08

ISO: JSVP2PL1616K08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864379
Delivery date: 3-5 days
$101.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,P style, 117.5deg Approach

Details

No-offset Screw-on toolholder with 117.5deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Additional Key Information 3 Swiss
Application Swiss, Ext.Turning
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Sold by Pieces 1
Additional Key Information 1 Stick Tool
Additional Key Information 2 35.0°
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Lead Angle 117.5°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 08 "63"
Machine Side STICK TOOL0.6299
Clearance Angle 25.0°
Overall Len 4.9213 125.00MM
Cutting & Machining Properties
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VP
