  • TUNGALOY JSVP2PL1010K08 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.393 Shank

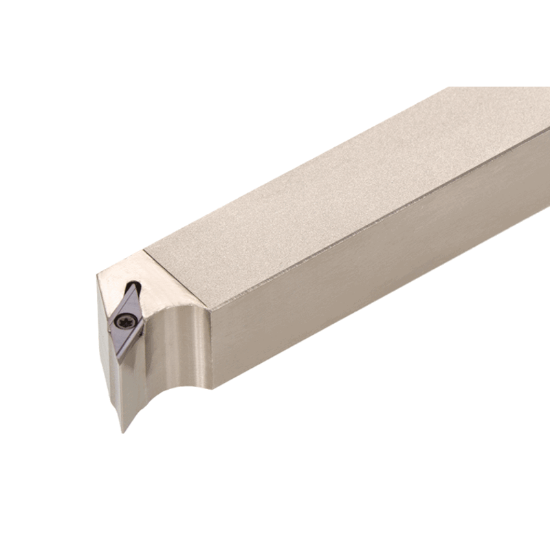

Picture of TUNGALOY JSVP2PL1010K08 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.393 Shank

TUNGALOY JSVP2PL1010K08 Swiss Stick Tool 35.0° Insert Posi,P style, 117.5deg Approac , Steel Square 0.393 Shank

ANSI: JSVP2PL1010K08

ISO: JSVP2PL1010K08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864319
Delivery date: 3-5 days
$90.45
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,P style, 117.5deg Approach

Details

No-offset Screw-on toolholder with 117.5deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Additional Key Information 1 Stick Tool
Additional Key Information 2 35.0°
Application Swiss, Ext.Turning
Package Size 1
Sold by Pieces 1
Insert/Tool Tool
Additional Key Information 3 Swiss
Shipping State Illinois
Insert Type Positive
Uncategorized
Made In USA No
Dimensional Specifications
Lead Angle 117.5°
Overall Len 4.9213 125.00MM
Insert Size Ic 08 "63"
Clearance Angle 25.0°
Shank/Pilot Dia 0.3937 10.00MM
Machine Side STICK TOOL0.3937
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Cutting & Machining Properties
Insert Style VP
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
