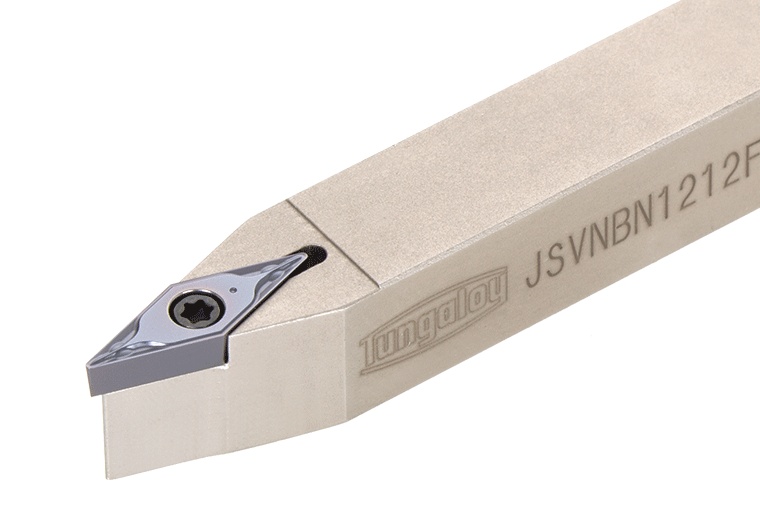

Picture of Tungaloy JSVNBN1616X11 Swiss Stick Tool 35.0° Insert Posi,V style, 72.5deg Approach , Steel Square 0.629 Shank

Tungaloy JSVNBN1616X11 Swiss Stick Tool 35.0° Insert Posi,V style, 72.5deg Approach , Steel Square 0.629 Shank

Part Number: TUN6733992 ISO: JSVNBN1616X11 ANSI:JSVNBN1616X11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1072698
Vendor: Sussex Tool and Supply
$114.60

Description

TUNGALOY 6733992 35.0 ° Stick Tool0.6299 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Hand Neutral
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 4.7244 120.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 11 "22"
Geometry & Angles
Lead Angle 72.5°
Lead Angle & Clearance Angle Combined Swiss, 72.5° Lead Angle 70.0° Clearance Angle
Clearance Angle 70.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
