  • TUNGALOY JSVL2PR1010K08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.393 Shank

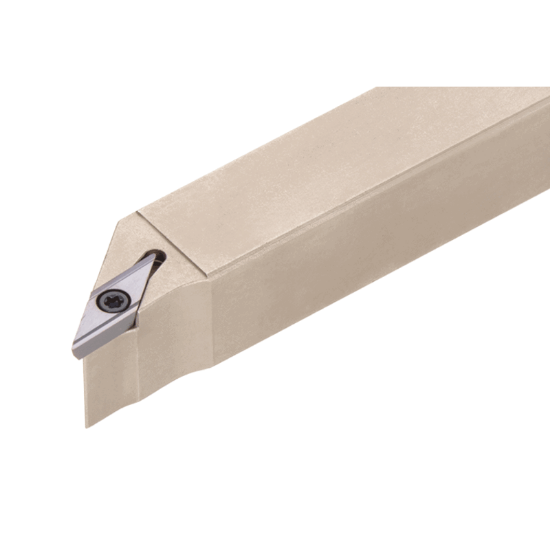

Picture of TUNGALOY JSVL2PR1010K08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.393 Shank

TUNGALOY JSVL2PR1010K08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.393 Shank

ANSI: JSVL2PR1010K08

ISO: JSVL2PR1010K08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864318
Delivery date: 3-5 days
$90.45
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Screw-on toolholder with 95deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 35.0°
Package Size 1
Sold by Pieces 1
Insert/Tool Tool
Insert Application General Purpose
Additional Key Information 1 Stick Tool
Additional Key Information 3 Swiss
Application Swiss, Ext.Turning
Shipping State Illinois
Insert Type Positive
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.3937 10.00MM
Machine Side STICK TOOL0.3937
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Clearance Angle 45.0°
Overall Len 4.9213 125.00MM
Insert Size Ic 08 "63"
Lead Angle 95°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Insert Style VP
