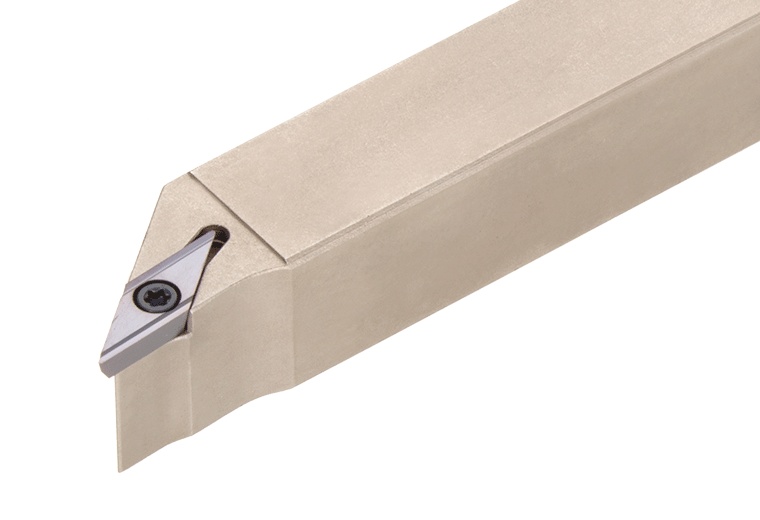

Picture of Tungaloy JSVL2PR1010K08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.393 Shank

Tungaloy JSVL2PR1010K08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.393 Shank

Part Number: TUN6864318 ISO: JSVL2PR1010K08 ANSI:JSVL2PR1010K08
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1073573

Description

TUNGALOY 6864318 35.0 ° Stick Tool0.3937 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VP
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Hand Right Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 4.9213 125.00MM
Shank/Pilot Dia 0.3937 10.00MM
Insert Size Ic 08 "63"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle 45.0° Clearance Angle, Swiss
Clearance Angle 45.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
