  • TUNGALOY JSVL2PL1212X08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.472 Shank

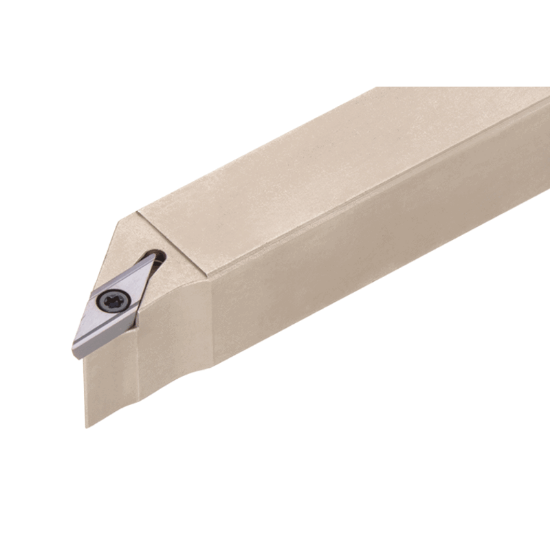

Picture of TUNGALOY JSVL2PL1212X08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.472 Shank

TUNGALOY JSVL2PL1212X08 Swiss Stick Tool 35.0° Insert Posi,L style, 95deg Approach , Steel Square 0.472 Shank

ANSI: JSVL2PL1212X08

ISO: JSVL2PL1212X08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6716223
Delivery date: 3-5 days
$96.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Screw-on toolholder with 95deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Stick Tool
Additional Key Information 2 35.0°
Application Swiss, Ext.Turning
Insert/Tool Tool
Insert Type Positive
Sold by Pieces 1
Package Size 1
Insert Application General Purpose
Additional Key Information 3 Swiss
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Clearance Angle 45.0°
Overall Len 4.7244 120.00MM
Lead Angle 95°
Insert Size Ic 08 "63"
Shank/Pilot Dia 0.4724 12.00MM
Machine Side STICK TOOL0.4724
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style VP
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
