  • TUNGALOY JSVJ2XR1212X09-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

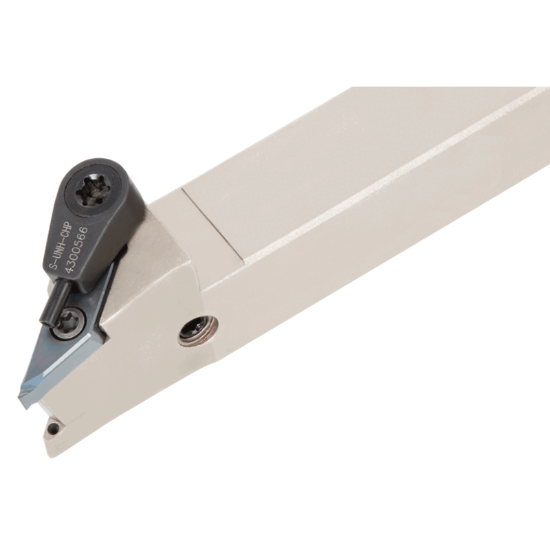

Picture of TUNGALOY JSVJ2XR1212X09-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JSVJ2XR1212X09-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JSVJ2XR1212X09-CHP

ISO: JSVJ2XR1212X09-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6766284
Delivery date: 3-5 days
$274.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholders for VXGU inserts with high pressure coolant channels and DirectTungJet system. Coolant is supplied from the tool post directly to the tools.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 2 35.0°
Application Swiss, Ext.Turning
Package Size 1
Sold by Pieces 1
Insert/Tool Tool
Additional Key Information 3 Swiss
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Clearance Angle 50.0°
Insert Size Ic 09 "73"
Lead Angle 93°
Shank/Pilot Dia 0.4724 12.00MM
Machine Side STICK TOOL0.4724
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
Hand R/L Right
