  • TUNGALOY JSVJ2BR102X-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

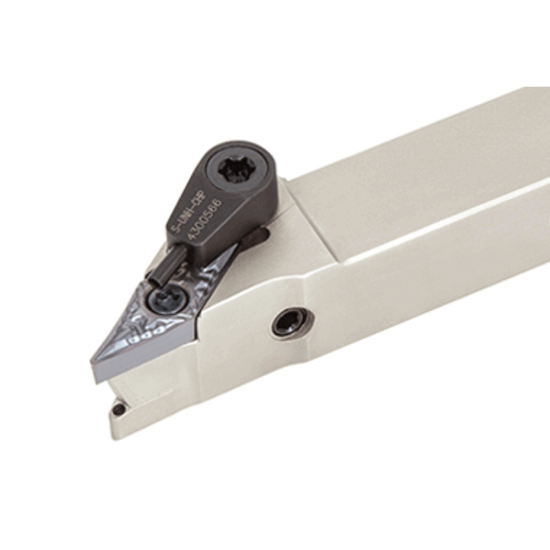

Picture of TUNGALOY JSVJ2BR102X-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

TUNGALOY JSVJ2BR102X-CHP Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

ANSI: JSVJ2BR102X-CHP

ISO: JSVJ2BR102X-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6776492
Delivery date: 3-5 days
$288.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholders for positive 35deg rhombic inserts with high pressure coolant channels and DirectTungJet system. Coolant is supplied from the tool post directly to the tools.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 2 35.0°
Package Size 1
Insert Application General Purpose
Additional Key Information 1 Stick Tool
Additional Key Information 3 Swiss
Application Swiss, Ext.Turning
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Uncategorized
Made In USA No
Dimensional Specifications
Lead Angle 93°
Overall Len 4.7240 119.99MM
Clearance Angle 50.0°
Insert Size Ic 11 "22"
Machine Side STICK TOOL0.6250
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VB
Inter/Extern External
