  • TUNGALOY JSVJ2BR082 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

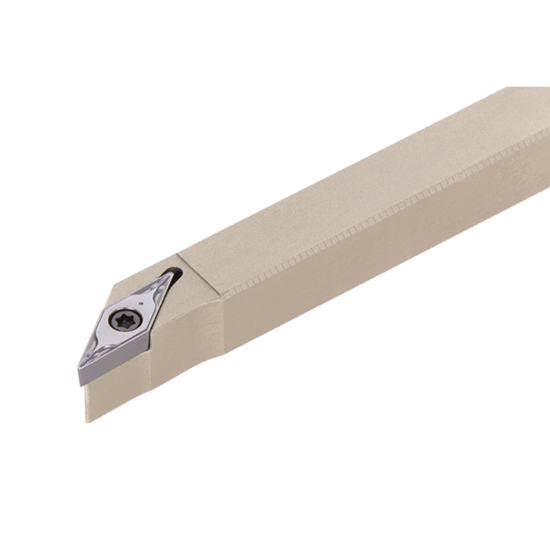

Picture of TUNGALOY JSVJ2BR082 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY JSVJ2BR082 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: JSVJ2BR082

ISO: JSVJ2BR082

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6708779
Delivery date: 3-5 days
$96.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder with 93deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Sold by Pieces 1
Additional Key Information 2 35.0°
Package Size 1
Insert Type Positive
Application Ext.Turning, Swiss
Insert Application General Purpose
Additional Key Information 1 Stick Tool
Additional Key Information 3 Swiss
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.0000 127.00MM
Lead Angle 93°
Machine Side Connection Size 0.5000 12.70MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Clearance Angle 50.0°
Machine Side STICK TOOL0.5000
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VB
