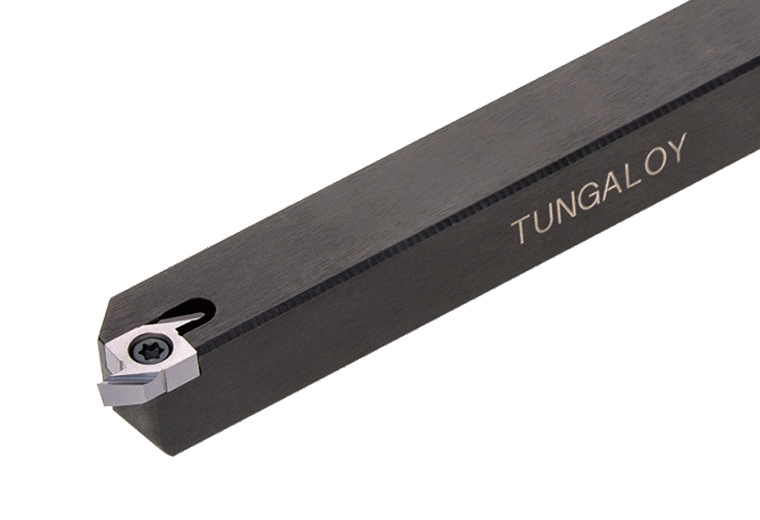

Picture of Tungaloy JSEGR1616K10 Swiss Stick Tool 60.0° Insert Steel Square 0.629 Shank

Tungaloy JSEGR1616K10 Swiss Stick Tool 60.0° Insert Steel Square 0.629 Shank

Part Number: TUN6804874 ISO: JSEGR1616K10 ANSI:JSEGR1616K10
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$164.90
SKU: 1073096

Description

TUNGALOY 6804874 Z Shape Stick Tool0.6299 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style 10
Insert Shape/Cutter Pocket Shape Z Shape
Insert Type Positive
Hand Right Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Insert Applications General Purpose
Insert Screw 6802561
Dimensions & Sizing
Overall Length 4.9213 125.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic ER
Geometry & Angles
Lead Angle 60° B
Lead Angle & Clearance Angle Combined 60° B Lead Angle, Swiss
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 60.0°
