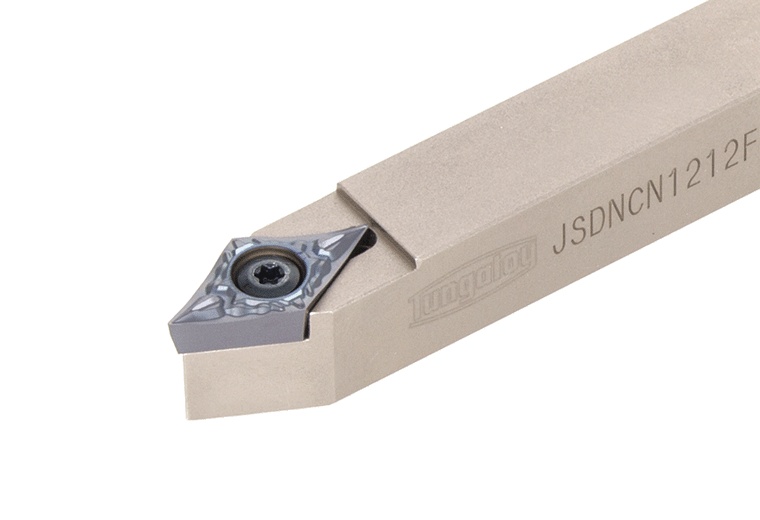

Picture of Tungaloy JSDNCN1616X11 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.629 Shank

Tungaloy JSDNCN1616X11 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.629 Shank

Part Number: TUN6735533 ISO: JSDNCN1616X11 ANSI:JSDNCN1616X11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1072761
Vendor: Sussex Tool and Supply
$114.60

Description

TUNGALOY 6735533 55.0 ° Stick Tool0.6299 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Neutral
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 4.7244 120.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 11 "32"
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 60.0° Clearance Angle, Swiss
Clearance Angle 60.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
