  • TUNGALOY JSDNCN103 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.625 Shank

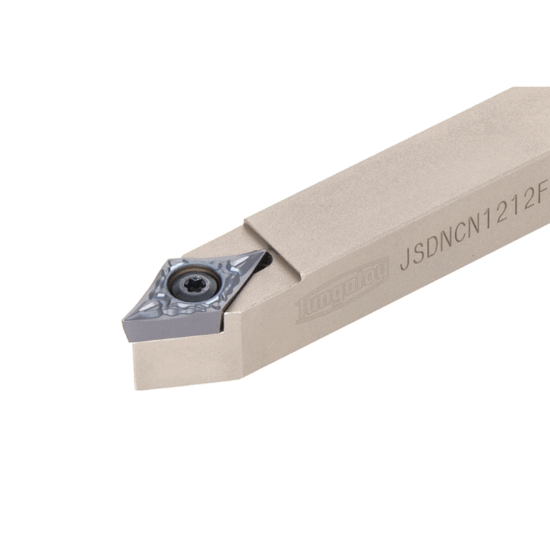

Picture of TUNGALOY JSDNCN103 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.625 Shank

TUNGALOY JSDNCN103 Swiss Stick Tool 55.0° Insert Posi,N style, 62.5deg Approach , Steel Square 0.625 Shank

ANSI: JSDNCN103

ISO: JSDNCN103

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6708777
Delivery date: 3-5 days
$99.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,N style, 62.5deg Approach

Details

Screw-on clamp toolholder with 62.5deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Sold by Pieces 1
Additional Key Information 1 Stick Tool
Application Swiss, Ext.Turning
Insert Application General Purpose
Additional Key Information 3 Swiss
Shipping State Illinois
Insert/Tool Tool
Additional Key Information 2 55.0°
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Clearance Angle 60.0°
Overall Len 5.0000 127.00MM
Machine Side STICK TOOL0.6250
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11 "32"
Lead Angle 62.5°
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Inter/Extern External
