  • TUNGALOY JSDJ2CR1616X11 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

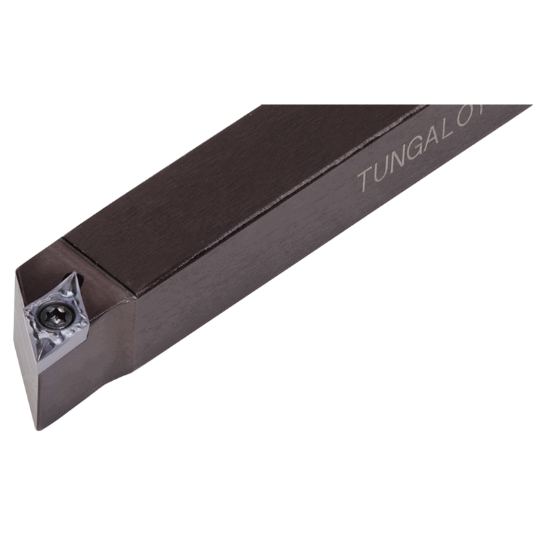

Picture of TUNGALOY JSDJ2CR1616X11 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JSDJ2CR1616X11 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JSDJ2CR1616X11

ISO: JSDJ2CR1616X11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733982
Delivery date: 3-5 days
$99.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Additional Key Information 3 Swiss
Shipping State Illinois
Sold by Pieces 1
Insert/Tool Tool
Additional Key Information 2 55.0°
Additional Key Information 1 Stick Tool
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 11 "32"
Machine Side STICK TOOL0.6299
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 30.0°
Overall Len 4.7244 120.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Inter/Extern External
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
