  • TUNGALOY JSDJ2CR1212F11-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

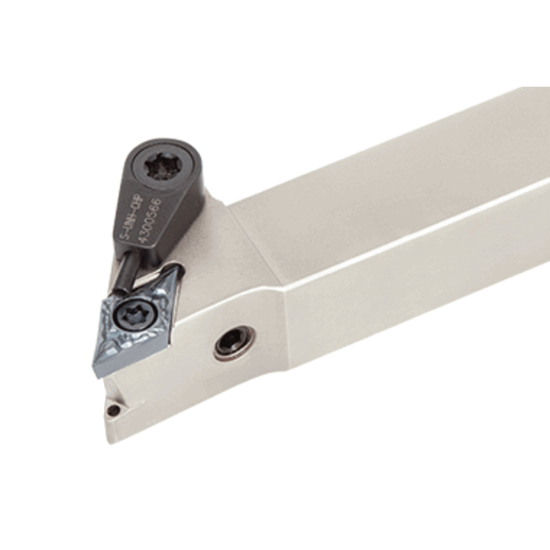

Picture of TUNGALOY JSDJ2CR1212F11-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

TUNGALOY JSDJ2CR1212F11-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.472 Shank

ANSI: JSDJ2CR1212F11-CHP

ISO: JSDJ2CR1212F11-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730576
Delivery date: 3-5 days
$274.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder for positive 55deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Additional Key Information 3 Swiss
Application Swiss, Ext.Turning
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Additional Key Information 2 55.0°
Sold by Pieces 1
Additional Key Information 1 Stick Tool
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side STICK TOOL0.4724
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 11 "32"
Lead Angle 93°
Overall Len 3.3465 85.00MM
Clearance Angle 30.0°
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Insert Style DC
Hand R/L Right
