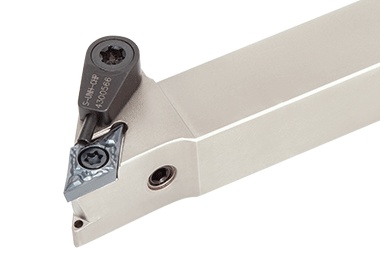

Picture of Tungaloy JSDJ2CR103X-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

Tungaloy JSDJ2CR103X-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.625 Shank

Part Number: TUN6776490 ISO: JSDJ2CR103X-CHP ANSI:JSDJ2CR103X-CHP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1072958
Vendor: Sussex Tool and Supply
$326.60

Description

TUNGALOY 6776490 55.0 ° Stick Tool0.6250 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Right Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 4.7240 119.99MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11 "32"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined Swiss, 93° Lead Angle 30.0° Clearance Angle
Clearance Angle 30.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
