  • TUNGALOY JSDJ2CR082-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

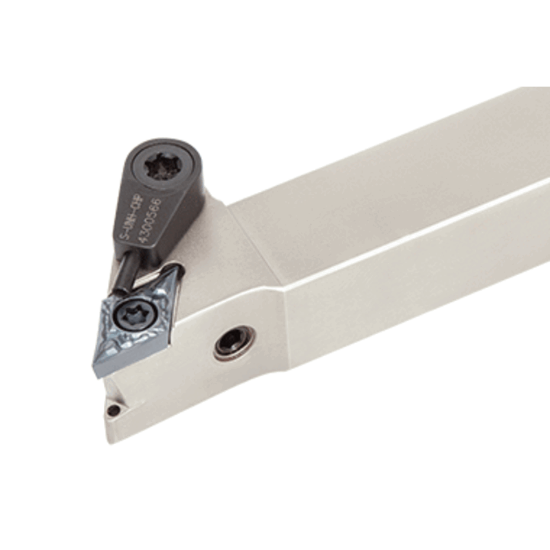

Picture of TUNGALOY JSDJ2CR082-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY JSDJ2CR082-CHP Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: JSDJ2CR082-CHP

ISO: JSDJ2CR082-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730837
Delivery date: 3-5 days
$274.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Screw-on toolholder for positive 55deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Additional Key Information 2 55.0°
Sold by Pieces 1
Additional Key Information 1 Stick Tool
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Additional Key Information 3 Swiss
Shipping State Illinois
Insert Type Positive
Uncategorized
Made In USA No
Dimensional Specifications
Clearance Angle 30.0°
Overall Len 3.3440 84.94MM
Lead Angle 93°
Machine Side Connection Size 0.5000 12.70MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 07 "21"
Machine Side STICK TOOL0.5000
Cutting & Machining Properties
Insert Style DC
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
