  • TUNGALOY JSCL2CR103 Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.625 Shank

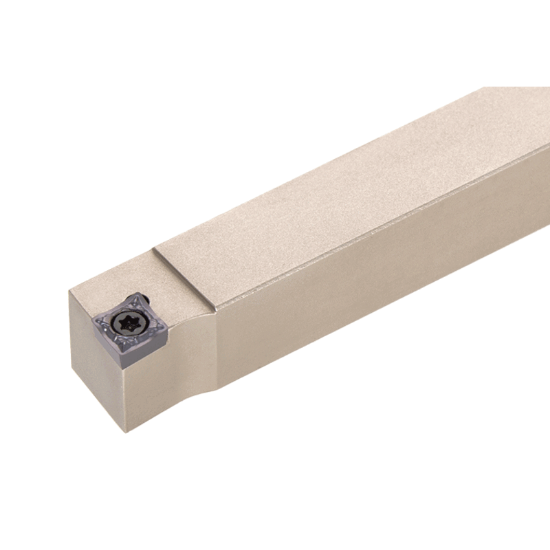

Picture of TUNGALOY JSCL2CR103 Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.625 Shank

TUNGALOY JSCL2CR103 Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.625 Shank

ANSI: JSCL2CR103

ISO: JSCL2CR103

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6708759
Delivery date: 3-5 days
$99.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,L style, 95deg Approach

Details

No-offset Screw-on toolholder with 95deg approach angle, for positive 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Additional Key Information 3 Swiss
Shipping State Illinois
Additional Key Information 1 Stick Tool
Application Swiss, Ext.Turning
Package Size 1
Insert Type Positive
Additional Key Information 2 80.0°
Sold by Pieces 1
Insert/Tool Tool
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 09 "32"
Machine Side STICK TOOL0.6250
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6250 15.88MM
Lead Angle 95°
Overall Len 5.0000 127.00MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Style CC
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
