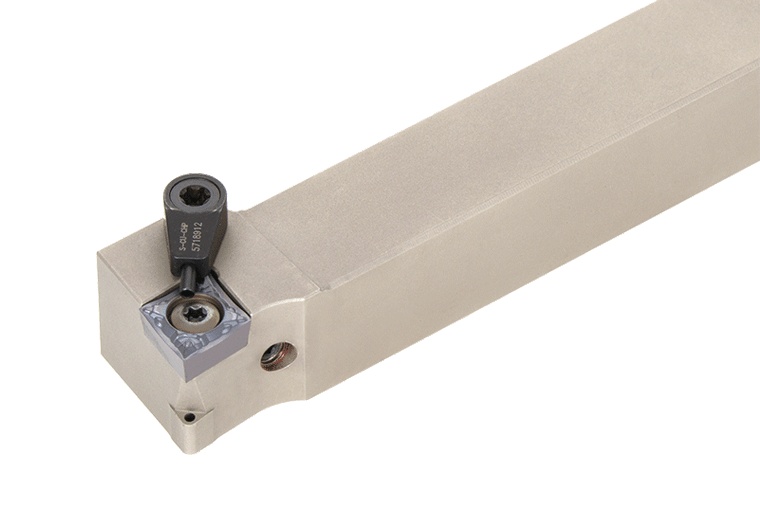

Picture of Tungaloy JSCL2CR083X-CHP Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.500 Shank

Tungaloy JSCL2CR083X-CHP Swiss Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.500 Shank

Part Number: TUN6776487 ISO: JSCL2CR083X-CHP ANSI:JSCL2CR083X-CHP
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$330.55
SKU: 1072955

Description

TUNGALOY 6776487 80.0 ° Stick Tool0.5000 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Hand Right Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Insert Screw 6802581
Dimensions & Sizing
Overall Length 4.7500 120.65MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 09 "32"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined Swiss, 95° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 80.0°
