  • TUNGALOY JPVJ2XR1616X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

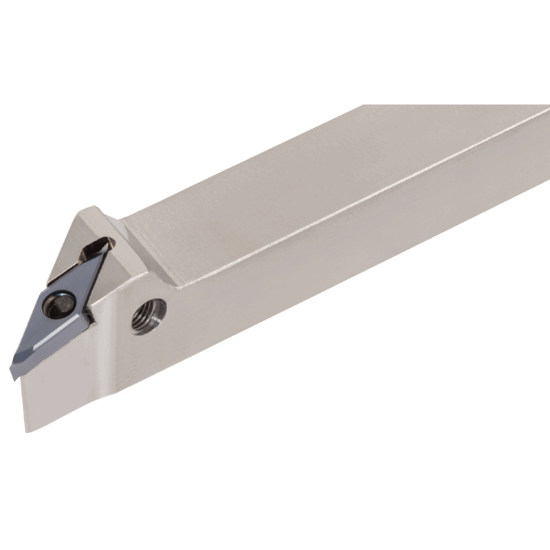

Picture of TUNGALOY JPVJ2XR1616X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY JPVJ2XR1616X09 Swiss Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: JPVJ2XR1616X09

ISO: JPVJ2XR1616X09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735005
Delivery date: 3-5 days
$117.45
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for VXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Sold by Pieces 1
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 2 35.0°
Additional Key Information 3 Swiss
Application Swiss, Ext.Turning
Shipping State Illinois
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Clearance Angle 50.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7244 120.00MM
Shank/Pilot Dia 0.6299 16.00MM
Machine Side STICK TOOL0.6299
Machine Side Connection Size 0.6299 16.00MM
Insert Size Ic 09 "73"
Lead Angle 93°
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VX
Inter/Extern External
