  • TUNGALOY JPDJ2XL082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

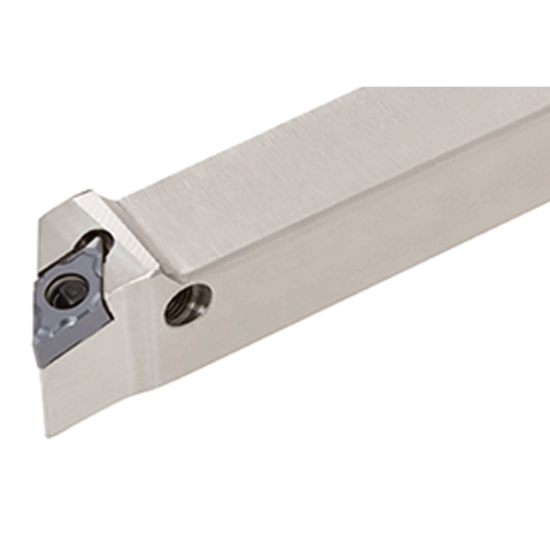

Picture of TUNGALOY JPDJ2XL082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY JPDJ2XL082 Swiss Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: JPDJ2XL082

ISO: JPDJ2XL082

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6712889
Delivery date: 3-5 days
$116.05
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Posi,J style, 93deg Approach

Details

No-offset Back clamp toolholder with 93deg approach angle, for DXGU inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 1 Stick Tool
Package Size 1
Application Ext.Turning, Swiss
Additional Key Information 2 55.0°
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Additional Key Information 3 Swiss
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.7500 120.65MM
Machine Side STICK TOOL0.5000
Clearance Angle 30.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Insert Size Ic 07 "22"
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Insert Style DX
