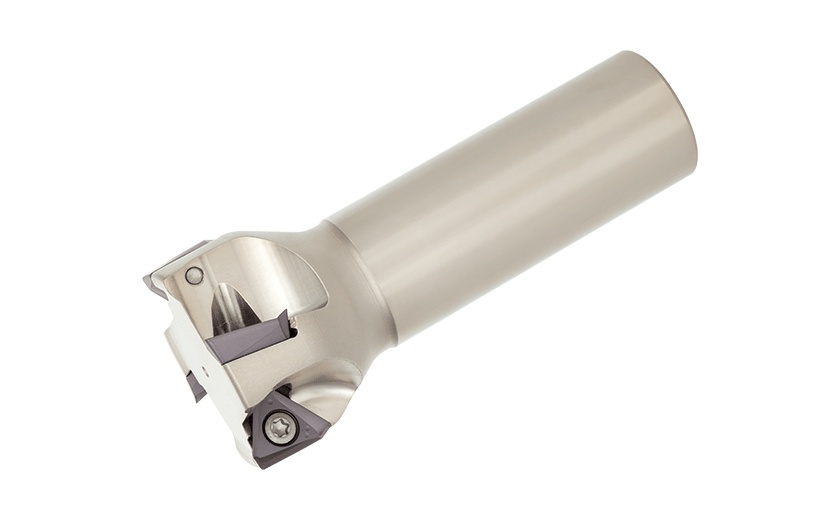

Picture of Tungaloy EPA15R200U0125W04N Milling Cutter 90.0° 2.000 Cutter Diameter Weldon 1.2500 4.500 OAL 4 Flute

Tungaloy EPA15R200U0125W04N Milling Cutter 90.0° 2.000 Cutter Diameter Weldon 1.2500 4.500 OAL 4 Flute

Part Number: TUN6996217 ISO: EPA15R200U0125W04N ANSI:EPA15R200U0125W04N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1017738
Vendor: Sussex Tool and Supply
$521.65
TUNGALOY 6996217 Triangle 90.0°, End Mill End Mill Weldon 1.2500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 4.5000 114.30MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style TO
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size Ic 15
Cut Dia Min 2.0000 50.80MM
Hand Right Hand
Depth Of Cut Max 0.5900
Cut Dia Max 2.0000 50.80MM
Insert Screw 4352056
Cutting Edge Angle 90.0°
