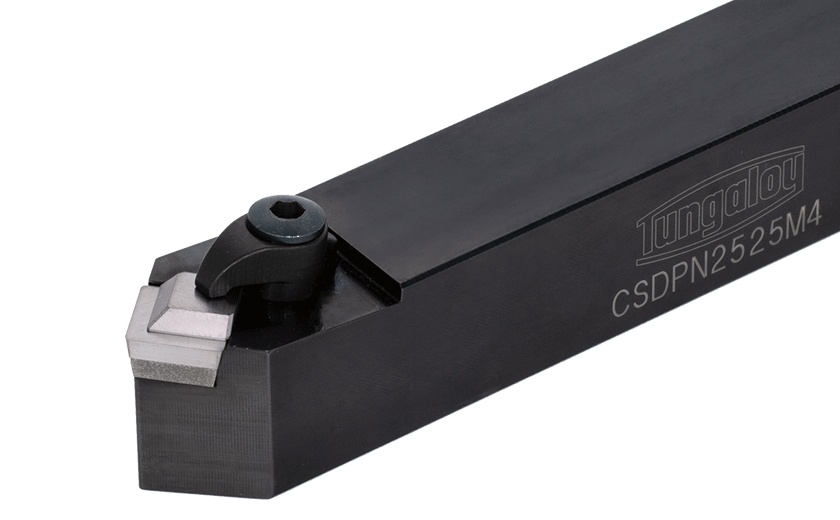

Picture of Tungaloy CSDPN1616H3 Stick Tool Square Insert Posi,D style, 45deg Approach , Steel Square 0.629 Shank

Tungaloy CSDPN1616H3 Stick Tool Square Insert Posi,D style, 45deg Approach , Steel Square 0.629 Shank

Part Number: TUN6802486 ISO: CSDPN1616H3 ANSI:CSDPN1616H3
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1072972
Vendor: Sussex Tool and Supply
$122.15

Description

TUNGALOY 6802486 Square Stick Tool0.6299 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Neutral
Inter/Extern External
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 09 "32"
Geometry & Angles
Lead Angle 45°
Lead Angle & Clearance Angle Combined 45° Lead Angle 40.0° Clearance Angle
Clearance Angle 40.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Square
