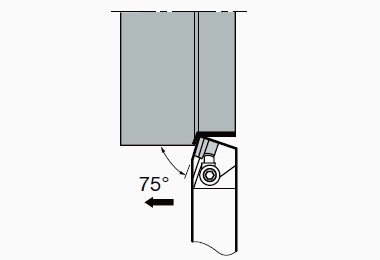

Picture of Tungaloy CSBNL2525 Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 0.984 Shank

Tungaloy CSBNL2525 Stick Tool Square Insert Neg,B/R style, 75deg Approach , Steel Square 0.984 Shank

Part Number: TUN6802475 ISO: CSBNL2525 ANSI:CSBNL2525
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1072967
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

TUNGALOY 6802475 Square Stick Tool0.9843 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Hand Left Hand
Inter/Extern External
Dimensions & Sizing
Overall Length 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Insert Size Ic 12 "43"
Geometry & Angles
Lead Angle 75°
Lead Angle & Clearance Angle Combined 75° Lead Angle 10.0° Clearance Angle
Clearance Angle 10.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Square
