  • TUNGALOY C5PDJNR35060-15N Quick Change Stick Tool 55.0° Insert ISO 26623 1 (TungCap) , Neg,J style, 93deg Approach , Steel PSC "Capt0 Type" 1.968 Shank

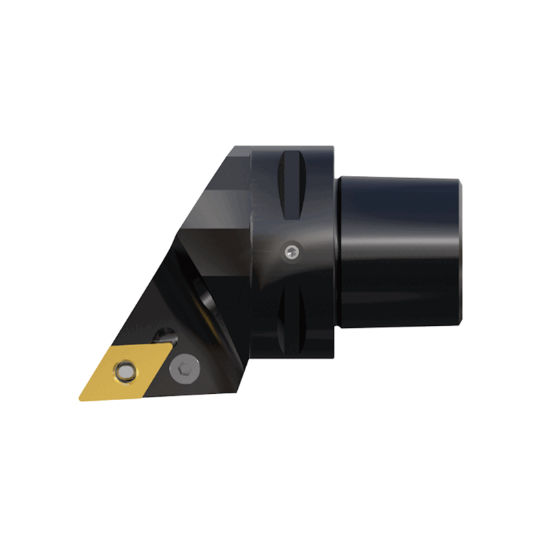

Picture of TUNGALOY C5PDJNR35060-15N Quick Change Stick Tool 55.0° Insert ISO 26623 1 (TungCap) , Neg,J style, 93deg Approach , Steel PSC "Capt0 Type" 1.968 Shank

TUNGALOY C5PDJNR35060-15N Quick Change Stick Tool 55.0° Insert ISO 26623 1 (TungCap) , Neg,J style, 93deg Approach , Steel PSC "Capt0 Type" 1.968 Shank

ANSI: C5PDJNR35060-15N

ISO: C5PDJNR35060-15N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6706232
Delivery date: 3-5 days
$353.45
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

ISO 26623 1 (TungCap) Neg,J style, 93deg Approach

Details

TungCap Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 4 PSC 5 "Capt0 Type"
Insert/Tool Tool
Shipping State Illinois
Additional Key Information 2 55.0°
Sold by Pieces 1
Additional Key Information 3 Quick Change
Application Ext.Turning
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side PSC "Capt0 Type"5
Tool Material Steel
Clearance Angle 30.0°
Overall Len 2.3620 59.99MM
Machine Side Connection Size 1.9685 50.00MM
Insert Size Ic 12 "43"
Lead Angle 93°
Shank/Pilot Dia 1.9685 50.00MM
Machine Side Connection Type PSC "Capt0 Type"
Min Bore 4.3310
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Right
