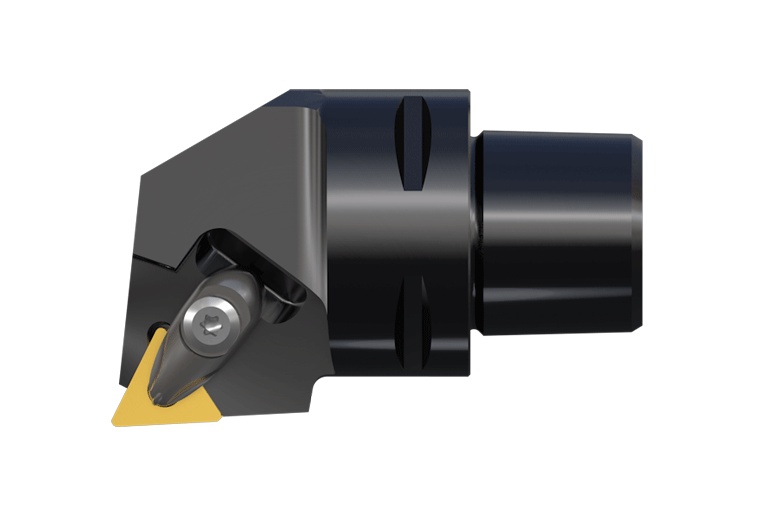

Picture of Tungaloy C4ATJNR27050-16N Quick Change Stick Tool Triangle Insert ISO 26623 1 (TungCap) , Neg,J style, 93deg Approach , Steel PSC "Capto Type" 1.574 Shank

Tungaloy C4ATJNR27050-16N Quick Change Stick Tool Triangle Insert ISO 26623 1 (TungCap) , Neg,J style, 93deg Approach , Steel PSC "Capto Type" 1.574 Shank

Part Number: TUN6745419 ISO: C4ATJNR27050-16N ANSI:C4ATJNR27050-16N
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$289.45
SKU: 1072792

Description

TUNGALOY 6745419 Triangle Stick Tool Quick Change CAPTO4 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type General Purpose
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Negative
Hand Right Hand
Collet Seal Type C4
Clamp Screw 6852685
Clamp/Wedge 6853758
Insert Style TN
Seat Screw 6802569
Seat/Nest 6853219
Dimensions & Sizing
Overall Length 1.9690 50.01MM
Insert Size Ic 16 "33"
Shank/Pilot Dia 1.5748 40.00MM
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle
Performance & Capacity
Min Bore 4.3310
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Triangle
