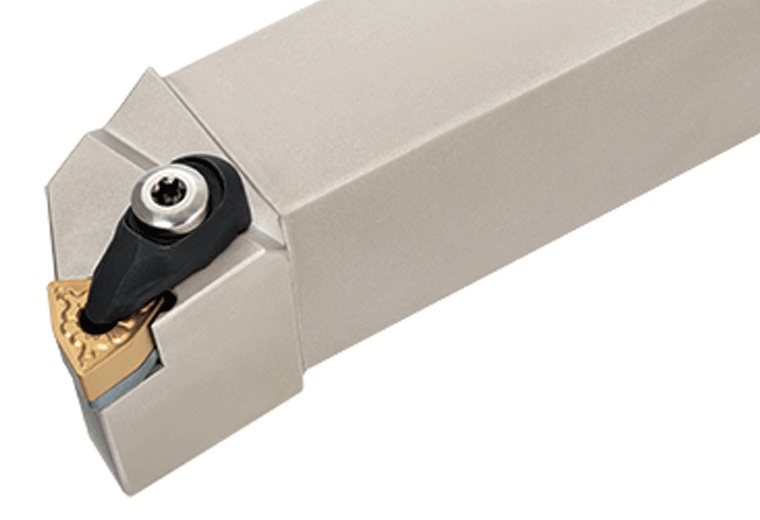

Picture of Tungaloy AWLNR1633-A Stick Tool Trigon Insert EcoTurn ToolHolders , Neg,L style, 95deg Approach , Steel Square 1.000 Shank

Tungaloy AWLNR1633-A Stick Tool Trigon Insert EcoTurn ToolHolders , Neg,L style, 95deg Approach , Steel Square 1.000 Shank

Part Number: TUN6708744 ISO: AWLNR1633-A ANSI:AWLNR1633-A
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$145.25
SKU: 1072413

Description

TUNGALOY 6708744 Trigon Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Right Hand
Inter/Extern External
Clamp Screw 6852685
Clamp/Wedge 6708754
Insert Style WN
Seat Screw 6802569
Seat/Nest 6853222
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Insert Size Ic 06 "33"
Shank/Pilot Dia 1.0000 25.40MM
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Trigon
