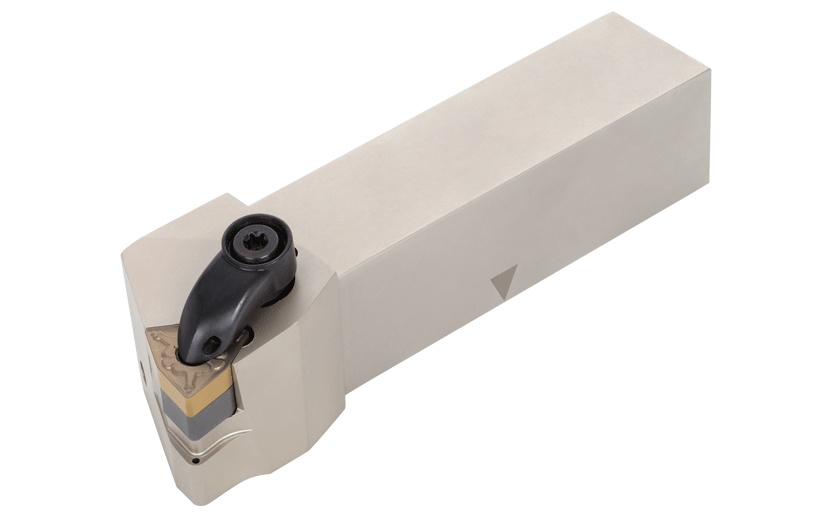

Picture of Tungaloy AWLNR16-4-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

Tungaloy AWLNR16-4-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

Part Number: TUN3346706 ISO: AWLNR16-4-CHP-MC ANSI:AWLNR16-4-CHP-MC
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$349.95
SKU: 1072364

Description

TUNGALOY 3346706 Trigon Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Right Hand
Inter/Extern External
Clamp/Wedge 3340350
Insert Style WN
Seat Screw 7000208
Seat/Nest 5505708
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Insert Size Ic 08 "43"
Shank/Pilot Dia 1.0000 25.40MM
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Trigon
