  • TUNGALOY AWLNL2525X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

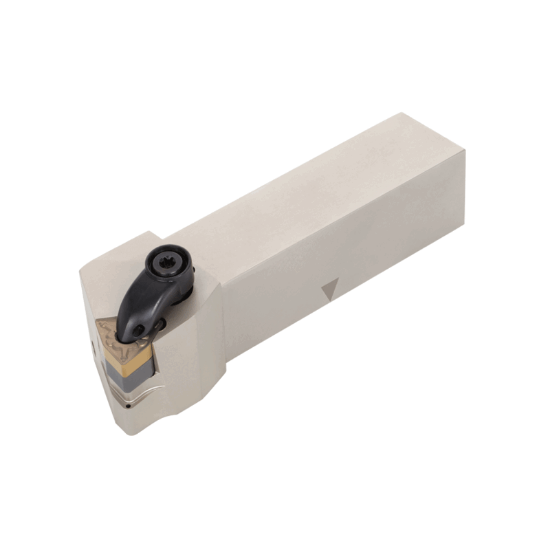

Picture of TUNGALOY AWLNL2525X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

TUNGALOY AWLNL2525X-08-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.984 Shank

ANSI: AWLNL2525X-08-CHP-MC

ISO: AWLNL2525X-08-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3346703
Delivery date: 3-5 days
$308.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholders with 95deg approach angle for negative trigon inserts with high pressure coolant channels. High-pressure coolant capability with tube and direct connection.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 2 Trigon
Uncategorized
Made In USA No
Dimensional Specifications
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Overall Len 4.7638 121.00MM
Shank/Pilot Dia 0.9843 25.00MM
Machine Side STICK TOOL0.9843
Insert Size Ic 12 "43"
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern External
Insert Style WN
